Roof Tile Firestop
Tenmat’s RTF and RRF Roof Tile/Ridge are roof cavity firestop products and are manufactured from low smoke zero halogen intumescent material.
You are here:
Roof Tile Firestop
Tenmat’s RTF and RRF Roof Tile/Ridge are roof cavity firestop products and are manufactured from low smoke zero halogen intumescent material.
PASSIVE FIRE PROTECTION
Fire resistance performance

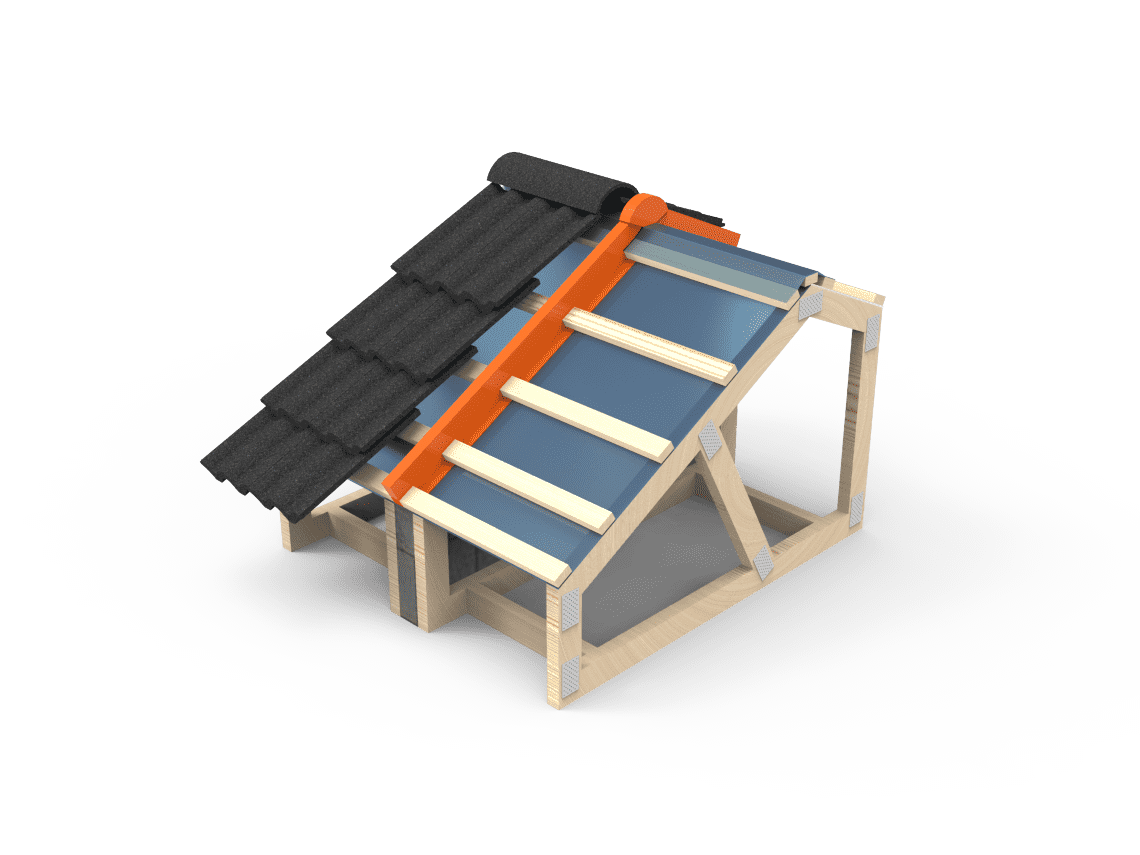

They are designed to provide fire resistance performance between roof/ridge tiles and the party walls or spandrel panels below the roof covering, which separate different properties within roof spaces or provide lines of compartmentation.
Highly flexible intumescent material

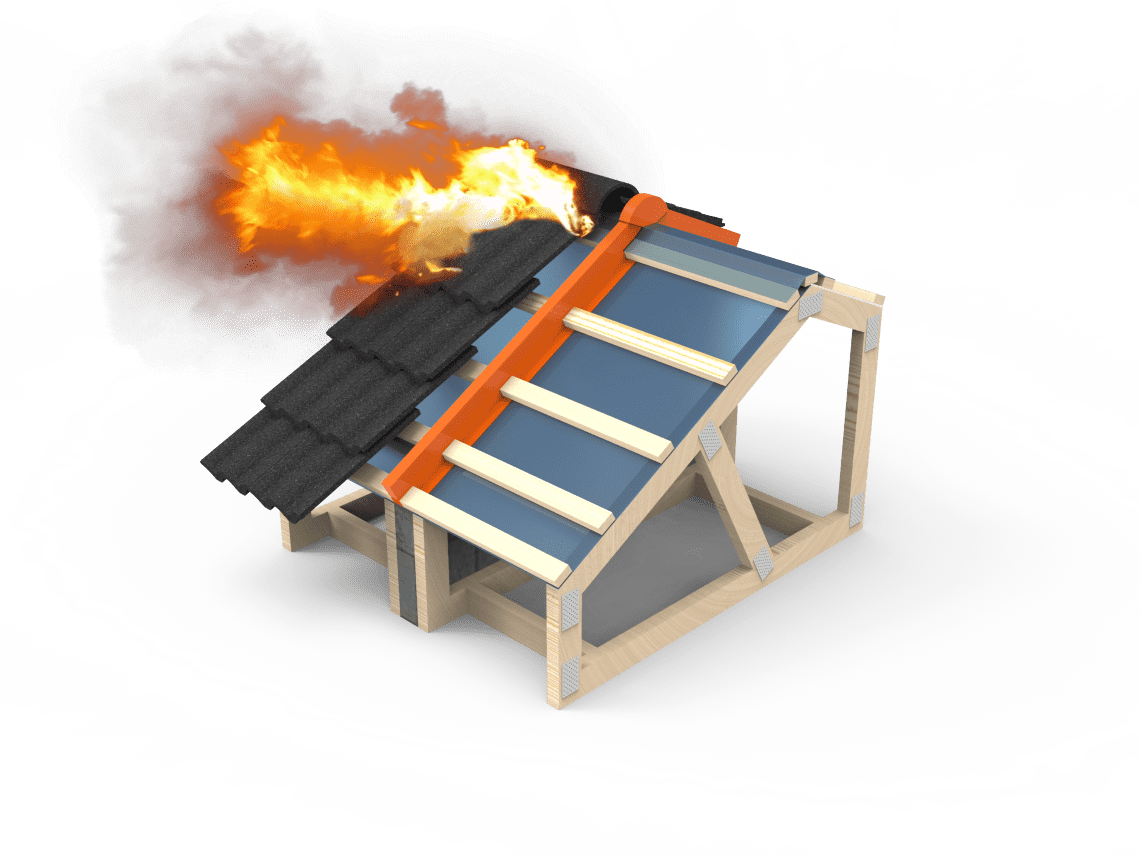

The RTF and RRF are manufactured from a flexible highly intumescent material allowing it to be provided in a roll format, they are also covered with a protective layer of polythene for ease of handling and to protect from water. In the event of a fire the RTF and RRF intumescent material which makes these roof cavity fire-stop products will expand to close the gap between the top of the wall/spandrel panel and the roof/ridge tiles, whilst also separating the roof batten and ridge tile timbers, providing effective fire resistance for 60 minutes, depending upon the non-combustibility of the roof covering (tiles) and the construction of the compartment/party wall.
Roof Tile Firestop at a glance
- A fire-rated Roof Cavity Fire Stop product, providing fire resistance performance for up to 60 minutes
- Ideal for multi-home compartments/shared roof space buildings
- Fire resistance test utilising the general principles of BS EN 1363-1:2020 with additional guidelines from TDG 19: (Nov 2017)
- Use category X, tested to ETAG 026-2, suitable for use in conditions of exposed weathering
- Patent pending design
- Suitable for a maximum tested under-tile to head of wall gap of 96mm
- Suitable for masonry walls and spandrel panels (stud wall construction), tested in conjunction with a combustible breather
- Membrane, timber battens and mechanically fixed ridge tiles (dry method no mortar)
- Low profile design to ensure no interference with a wide range of tile fits/profiles
