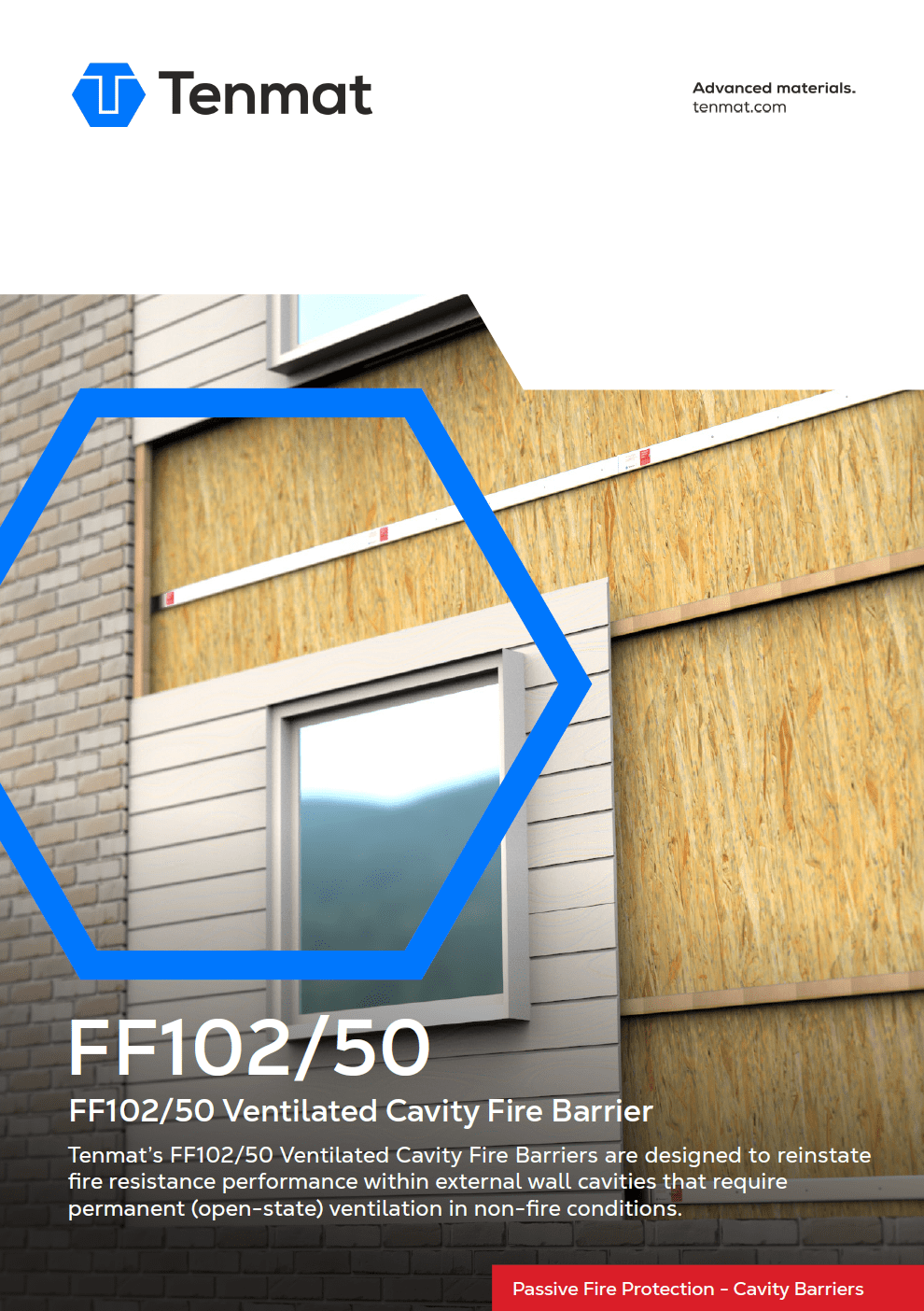

FF102/50 – Intumescent Strips

Tenmat’s FF102/50, Ventilated Cavity Fire Barriers, are manufactured from a low smoke zero halogen high expansion intumescent material.

FF102/50 – Intumescent Strips

Tenmat’s FF102/50, Ventilated Cavity Fire Barriers, are manufactured from a low smoke zero halogen high expansion intumescent material.

PASSIVE FIRE PROTECTION

Fire resisting performance

They are designed to reinstate fire resisting performance to external wall cavities that are required to be ventilated (open-state) in non-fire conditions. The FF102/50 is manufactured from a rigid intumescent material allowing it to be provided in a strip format, it is also covered with a protective layer of aluminium foil for ease of handling. The products hold 3rd Party Certification after having undergone extensive fire testing following the principles of BS EN1363-1 and in accordance with ASFP TGD19 (Fire Resistance Test for ‘Open-State’ Cavity Barriers).

PASSIVE FIRE PROTECTION

Fire resistance performance for cavities

In the event of a fire the FF102/50 intumescent strips will expand to close the external wall cavity, providing effective fire resistance, for integrity and insulation for up to 120 minutes depending upon the construction of the external walls. The FF102/50 is designed for use within cavities of up to 50mm and once installed will close the remaining free air gap in front of the 6mm cavity barrier of up to a maximum of 44mm (depending on construction type). No active maintenance required, where alterations are made around the product it should be checked visually to ensure that the product is still installed as per the approved original design and fitting instructions at the time of original installation.

FF102/50 at a glance

3rd Party Certification from IFC Certification
An "open state" cavity fire barrier for use horizontally within uninsulated, ventilated and drained cavities
CCPI Verified
Fire Rated for up to 120 minutes for both integrity and insulation when tested to the general principles of BS EN 1363-1 following ASFP TGD 19 guidance
No maintenance is required after installation

Ventilated design – developed to allow maximum ventilation and drainage of cavities reducing the need for cavity trays or weepholes
Suitable for “open-state” ventilated cavities up to 50mm wide
Provided in Intumescent strips of 1m long, 75mm wide and 6mm thick
Lightweight – designed to be easily and quickly installed

Test Approvals

Fire Test Approvals

The products hold 3rd Party Certification from IFC Certification in conjunction with a Field of Application Report from IFC Ltd following extensive fire testing following the principles of BS EN1363-1 and in accordance with ASFP TGD19 (Fire Resistance Test for ‘Open-State’ Cavity Barriers).

3rd Party Certificate No. IFCC1753

Field of Application Report PAR 22672 04
