Pipe Fire Sleeves

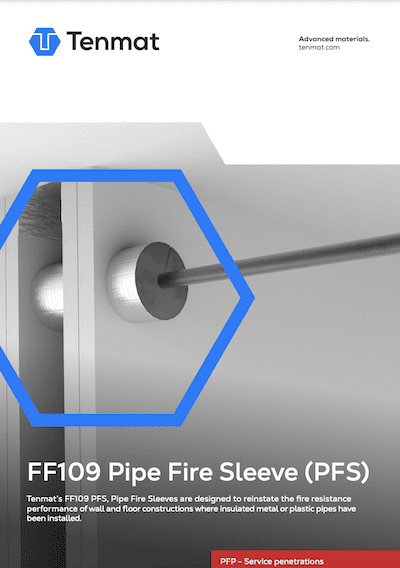

The FF109 Pipe Fire Sleeves (PFS) is a range of passive fire protection penetration seals designed for fire-stopping around insulated metal and combustible plastic pipes.
You are here:
Fire sleeves for pipes
The FF109 Pipe Fire Sleeves (PFS) is a range of passive fire protection penetration seals designed for fire-stopping around insulated metal and combustible plastic pipes.
MECHANICAL SERVICE PENETRATIONS
Passive Fire Protection for metal and plastic pipes
The Fire Sleeves offer Fire, Acoustic, Thermal and Vapour seal performance to a range of pipes passing through various wall or floor constructions.
The CE Marked range is fire tested in accordance with EN 1366-3 and classified to EN13501-2.
FBC™ System Compatible indicates that this product has been tested, and is monitored on an ongoing basis, to assure its chemical compatibility with FlowGuard Gold®, BlazeMaster® and Corzan® piping systems and products made with TempRite® Technology.” “The FBC System Compatible Logo, FBC™, FlowGuard Gold®, BlazeMaster®, Corzan®, and TempRite® are trademarks of Lubrizol Advanced Materials, Inc. or its affiliates.
MECHANICAL SERVICE PENETRATIONS
Unique intumescent material
The FF109 Pipe Fire Sleeves (PFS) are manufactured from a unique, low smoke, zero halogen intumescent material. The Fire Sleeves are supplied pre-formed and ready to install to suit a variety of pipe diameters.
With a nominal thickness of 25mm, the compressible intumescent sleeve is supplied wrapped in a reinforced aluminium foil allowing it to be cut down its length and retro-fitted around the pipes. This provides an effective fire, smoke and acoustic seal whilst also allowing for some thermal movement. Fire Ratings of EI30, EI60, EI90, EI120 or even up to EI240 minutes are offered depending on the construction type.
Fire sleeves at a glance
- CE Marked
- 4-in-1 Solution – Fire, Acoustic, Thermal and Vapour Seal
- Up to EI120 Minutes Fire Rating in Gypsum Walls and Solid Floors
- Suitable for both Metal and Plastic Pipes
- Assessed for use in Ablative Coated Mineral Wool Boards/Batts
- Simple & quick to install, no fixings or sleeving required
- Available to suit pipe diameters of 15mm to 169mm
- 1 length of Fire Sleeve can replace two fire collars
- Lubrizol Approved
- FBC System Compatible
Test Approvals
Fire Test Approvals
BS EN 1366-3: 2009 / EN 13501-2
Constructions Covered = Plasterboard Partitions, Solid Walls and Floors
Fire Ratings: Typically EI120 up to EI240 minutes
All reports available upon request:
- ETA-20/1164 – Element
- COC 2812-CPR-0341- Element
FBC™ System Compatible indicates that this product has been tested, and is monitored on an ongoing basis, to assure its chemical compatibility with FlowGuard Gold®, BlazeMaster® and Corzan® piping systems and products made with TempRite® Technology.” “The FBC System Compatible Logo, FBC™, FlowGuard Gold®, BlazeMaster®, Corzan®, and TempRite® are trademarks of Lubrizol Advanced Materials, Inc. or its affiliates.
Availability
To suit pipe sizes 15-169mm (PVC, HDPE, Copper, Steel)
Materials

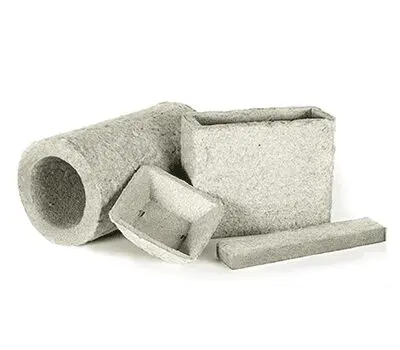

FF109
Firefly 109 is a compressible intumescent material which expands to form a resilient and stable char.
