You are here:
FF130 Luminaire Covers

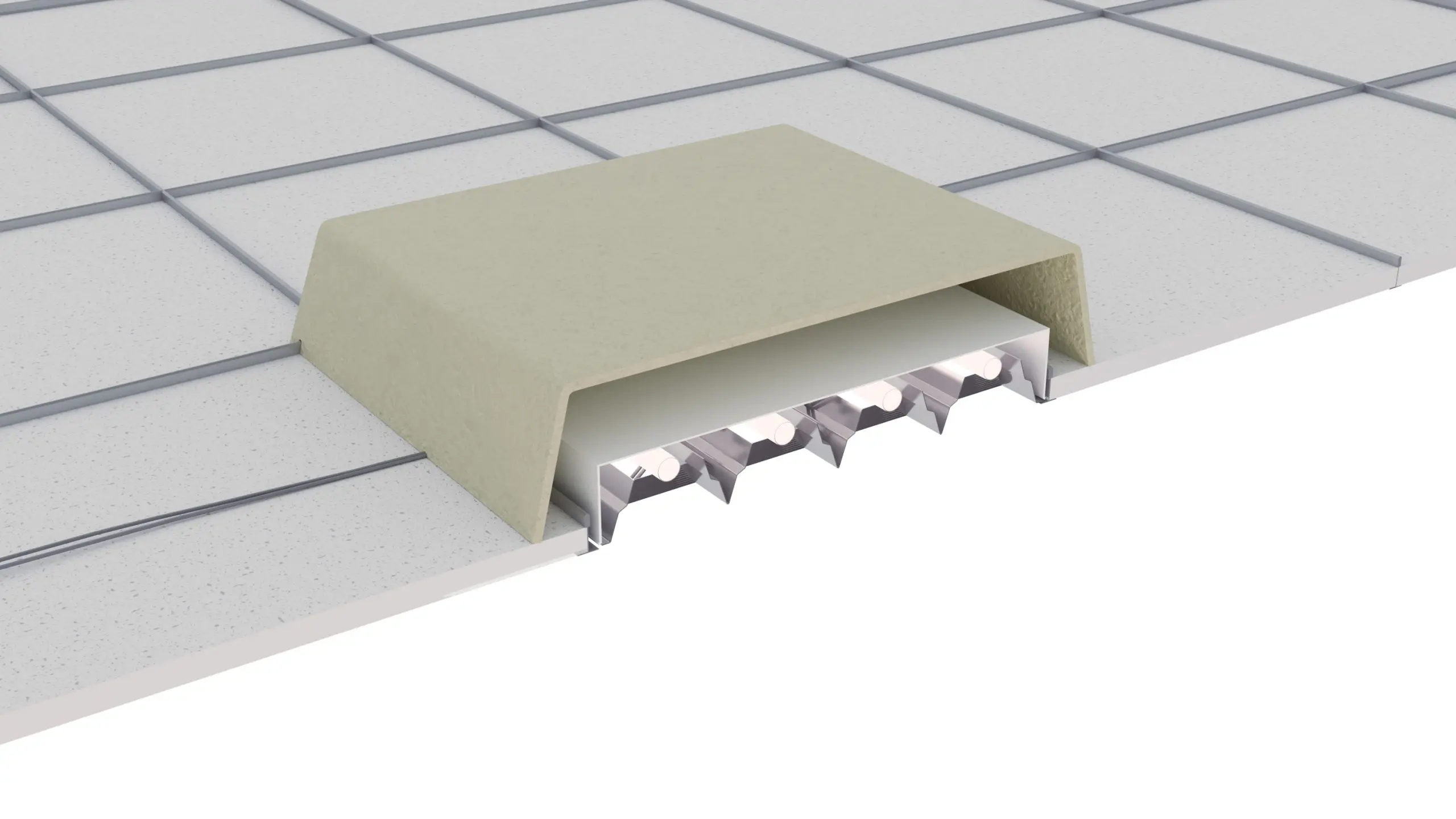

Tenmat FF130 Luminaire Covers are fire-rated covers or fire canopies designed to fire rate recessed luminaire or fluorescent module fixtures and reinstate the performance of ceilings when penetrated by recessed lights.
LIGHTING
Prevents or delays the spread of fire
They help to maintain the fire protection performance of the element protected by the ceiling – preventing or delaying the spread of fire.

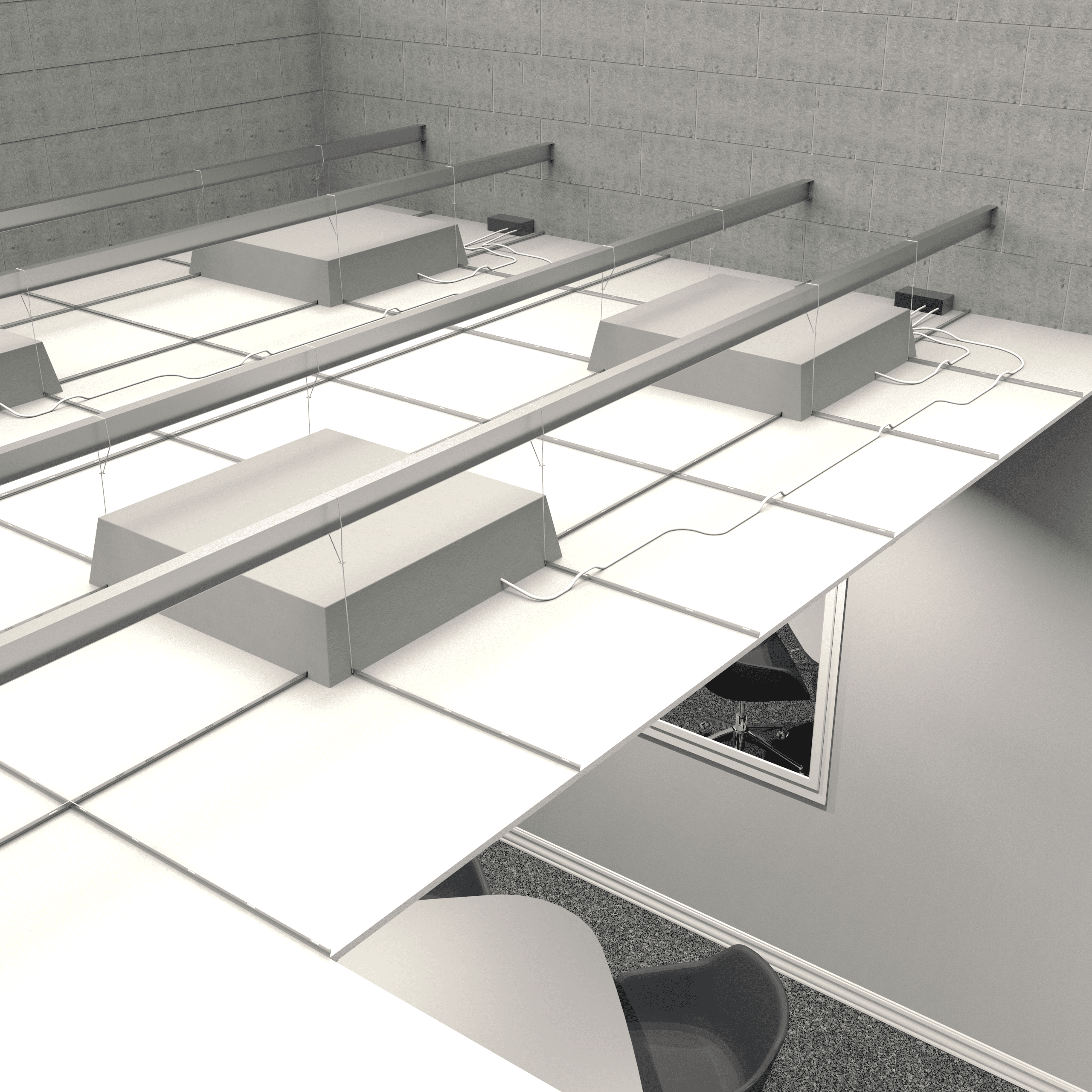

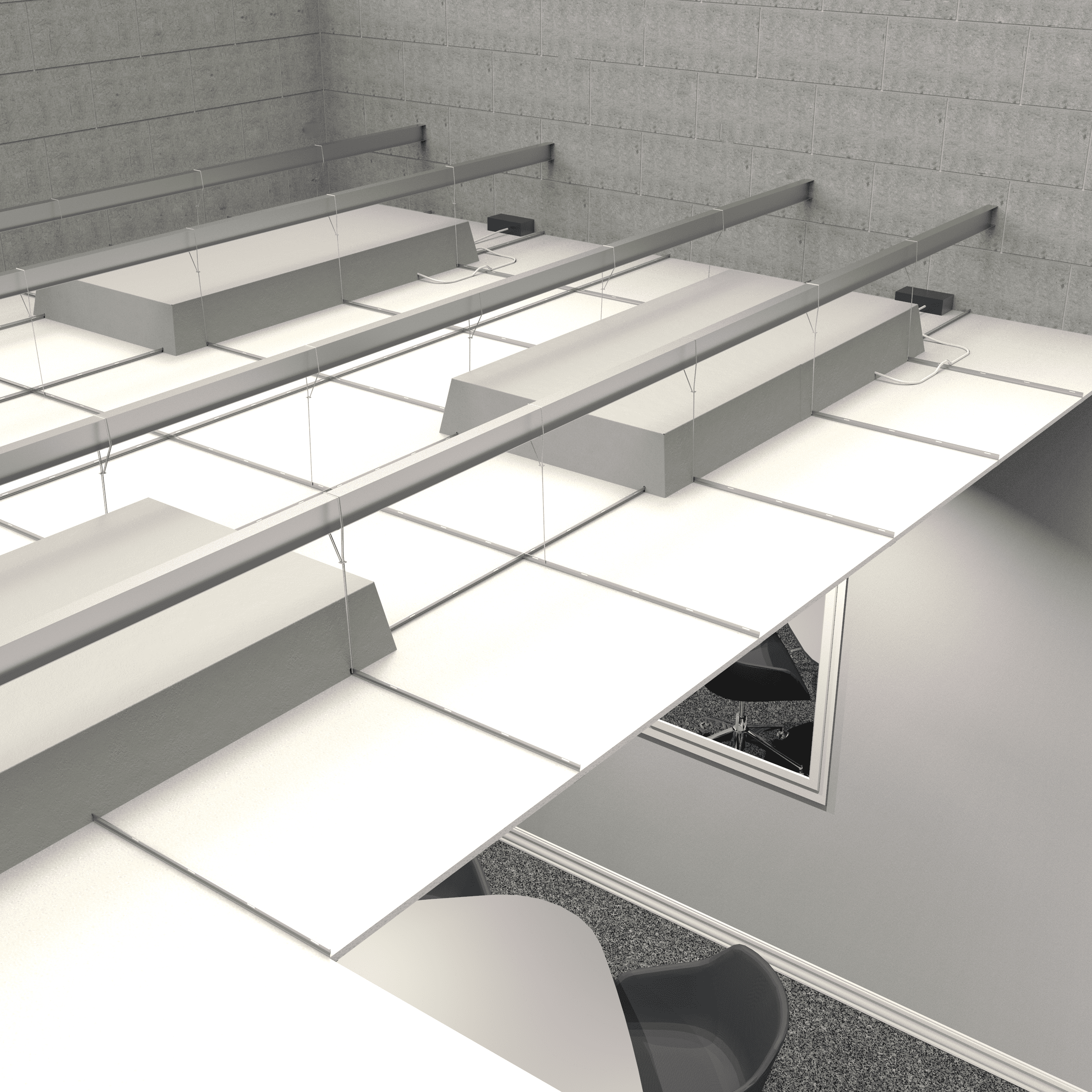

The covers are available to suit all common 600 x 600 mm and 1200 x 600 mm fixtures. The covers are ready to install, with no assembly required, and can even be retrofitted into position due to their flexible and durable design. They can be fitted from above or below the ceiling – through the diagonal in the ceiling grid, or folded for tight ceiling spaces. The insulating nature of the covers also offers significant thermal and acoustic benefits to the ceiling system.
Luminaire Covers at a glance
- 60 Minutes Fire Rating to BS 476 Part 23 in suspended ceilings protecting Structural Steel
- Up to 120 Minutes Fire Rating to UL263 / ULC S101-07
- 120 Minutes Fire Rating to EN1365-2 / EN13501-2 in suspended ceilings protecting solid floors
- Provides thermal and acoustic insulation
- Lightweight and flexible, offering easy installation
Materials
FF120 & FF130
Firefly 120 and Firefly 130 are exonerated mineral fibre-based refractory materials which are used to reinstate fire and acoustic ratings and improve airtightness, in lighting and electrical socket penetrations.
Test Approvals
Fire Test Approvals
Fire Resistance Assessment to BS 476: Part 23 for 60 Minutes – Assessment Report No.: A04038
Mineral fibre suspended ceiling protecting plastered reinforced concrete/hollow clay tile floor for EI120 Minutes – Classification Report No. 311120/3599FR
UL Classified for 60 Minutes
Luminaires, Luminaire Assemblies and Luminaire Enclosures Certified for Fire Resistance: UL R25019
