FF109 Downlight Cover

Tenmat FF109 Fire and Acoustic Downlight Covers are designed to limit the spread of fire and smoke through a fire-resistant ceiling/floor system where recessed downlights, spotlights or luminaires are installed.

FF109 Downlight Cover

LIGHTING

Easy installation for effective performance

The FF109 Acoustic Downlight Covers are a product type that may alternatively be known as Downlight Fire Hoods or Intumescent Fire Hoods and are manufactured with ease of installation in mind an ability to be retrofitted into position providing effective performance even if the downlight is removed and replaced.

INTUMESCENT DOWNLIGHT COVERS

Effective fire resistance for integrity and insulation

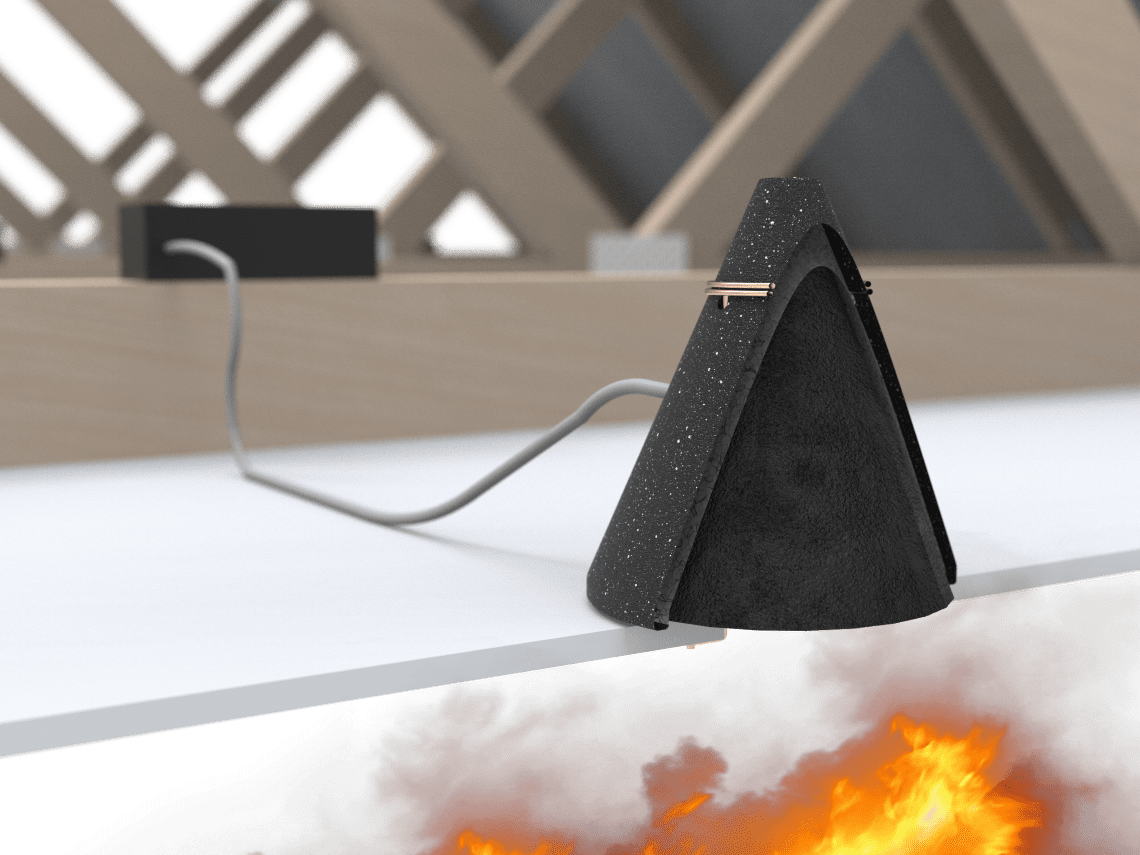

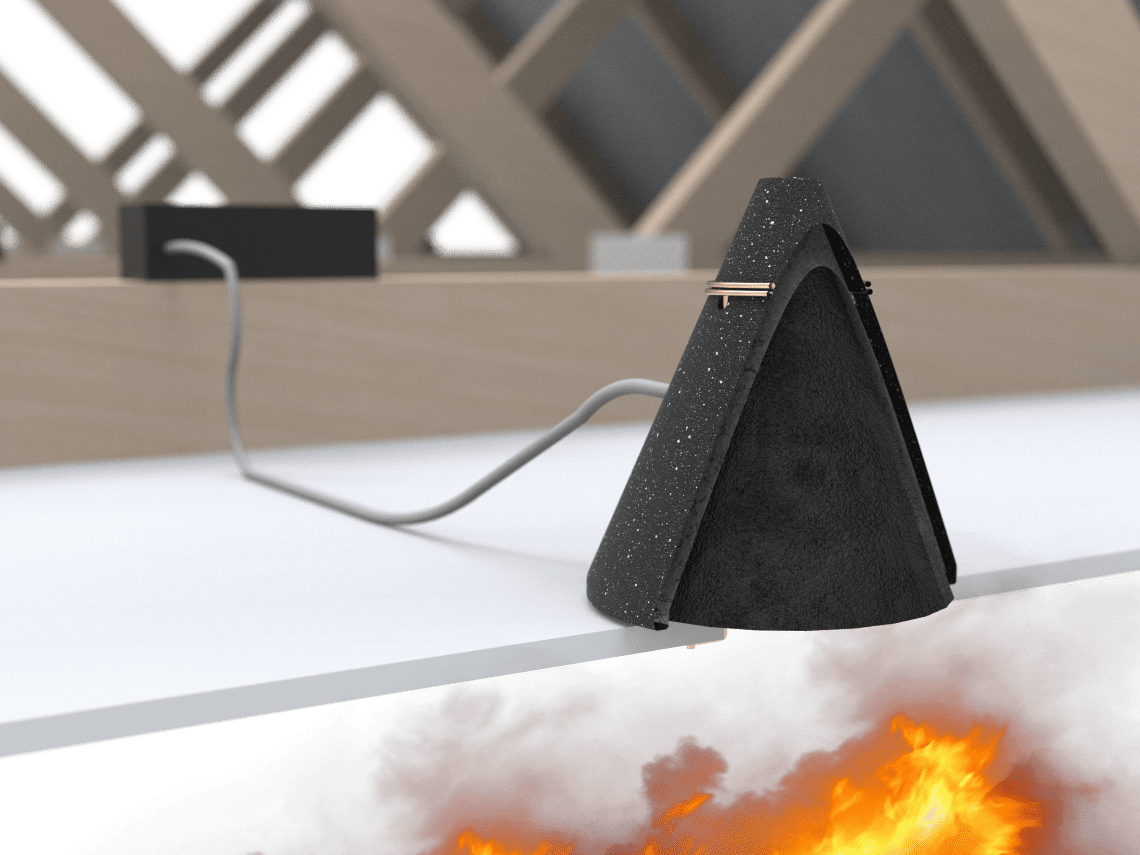

The intumescent downlight covers are ventilated to allow heat to disperse from the light but in the event of a fire, the intumescent material expands to seal off the ceiling cut-out and vent holes, providing effective fire resistance, for integrity (E) and insulation (I) for 30, 60 or 120 (EI 30/60/120) depending upon the ceiling and floor joist construction, even if the downlight is removed and replaced.

loft-environment-v2-after-fire-with-fire

Superior insulative performance

Due to the fully intumescent nature of the product, they offer superior insulative protection in a fire situation than other types of fire hoods for downlights.

Tenmat’s Downlight Fire Hoods are manufactured from halogen-free intumescent material and are designed to reinstate the fire and acoustic performance of ceilings and/or floor constructions when penetrated by downlighters or blank openings if lights are removed for maintenance.

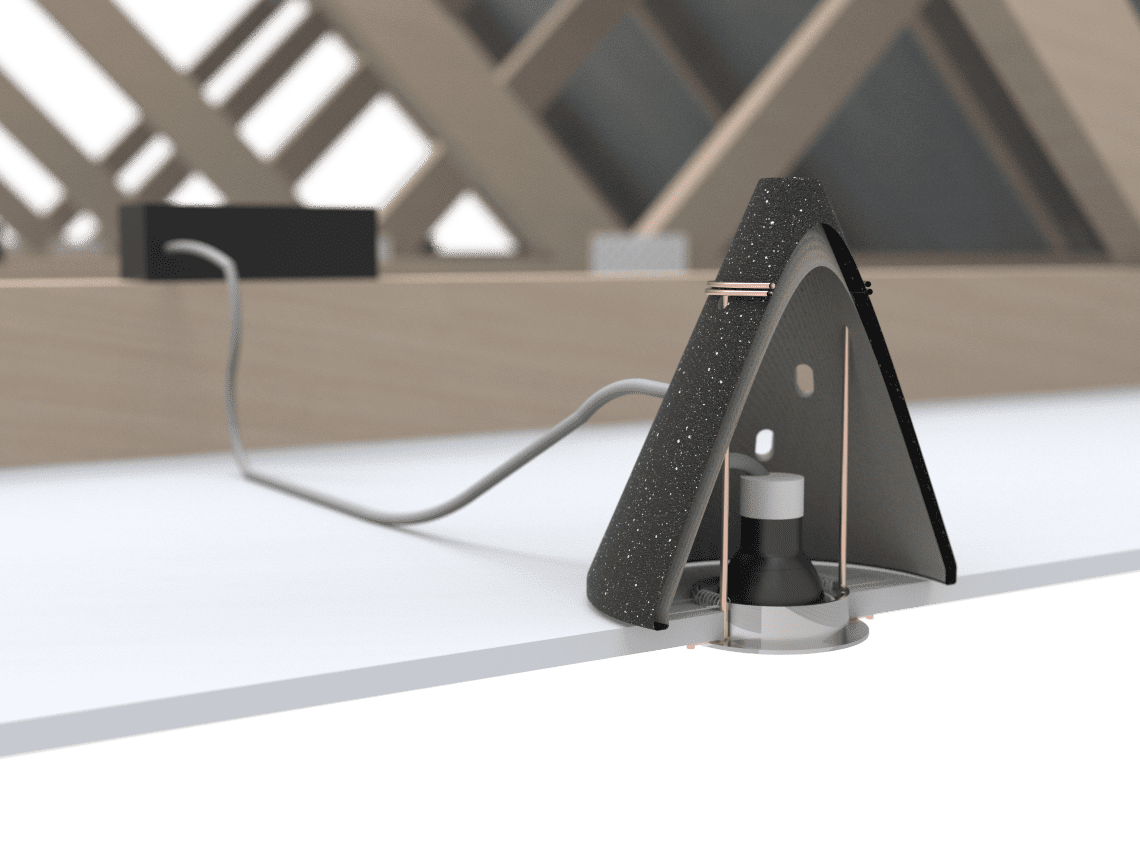

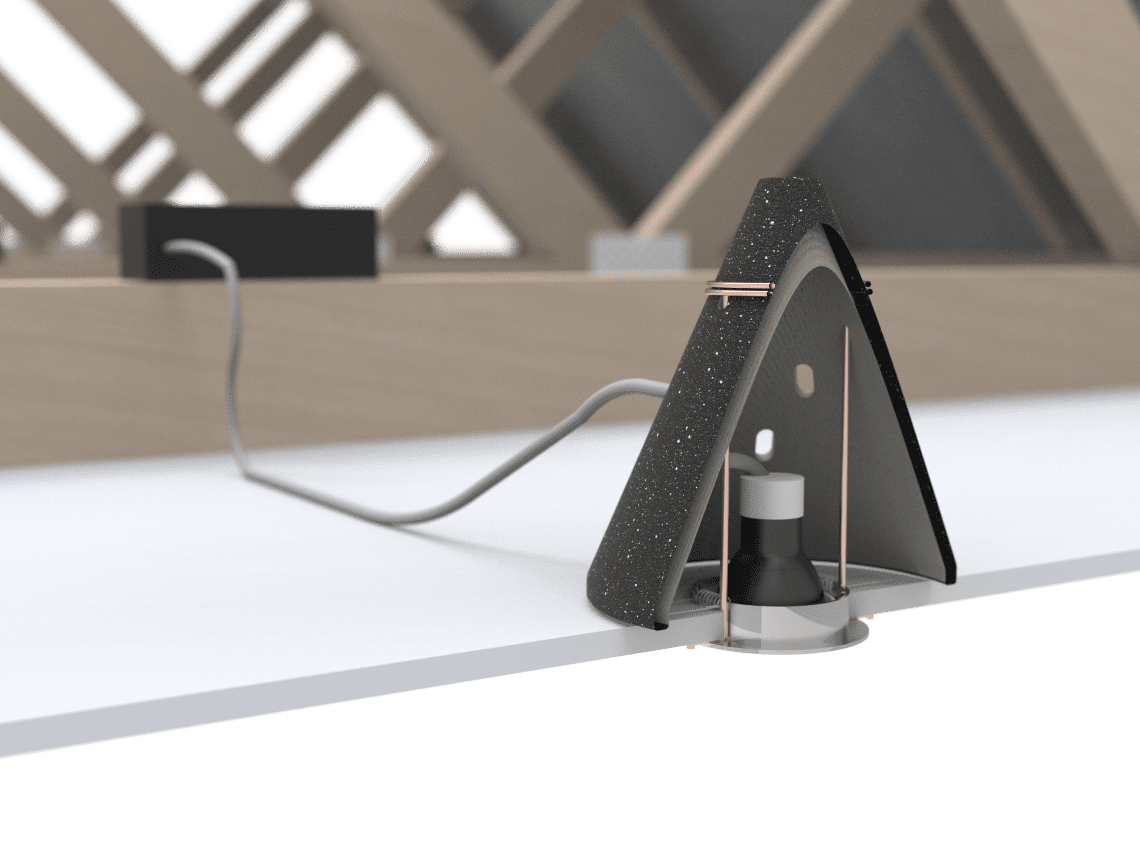

The Downlight Fire Hoods can be installed through the hole cut into the ceiling membrane, before springing back into shape to cover the light fitting, whilst allowing enough space between the hood and the light fitting to allow for normal operation of the light fitting.

Intumescent Downlight Covers at a glance

A fire-rated product, reinstating ceiling fire protection up to EI 120
Tested for minimal acoustic noise transfer, ideal for multi-home buildings
Ventilated design – developed to reduce heat build-up within the Firehood enclosure using a ventilated system
No maintenance is required after installation

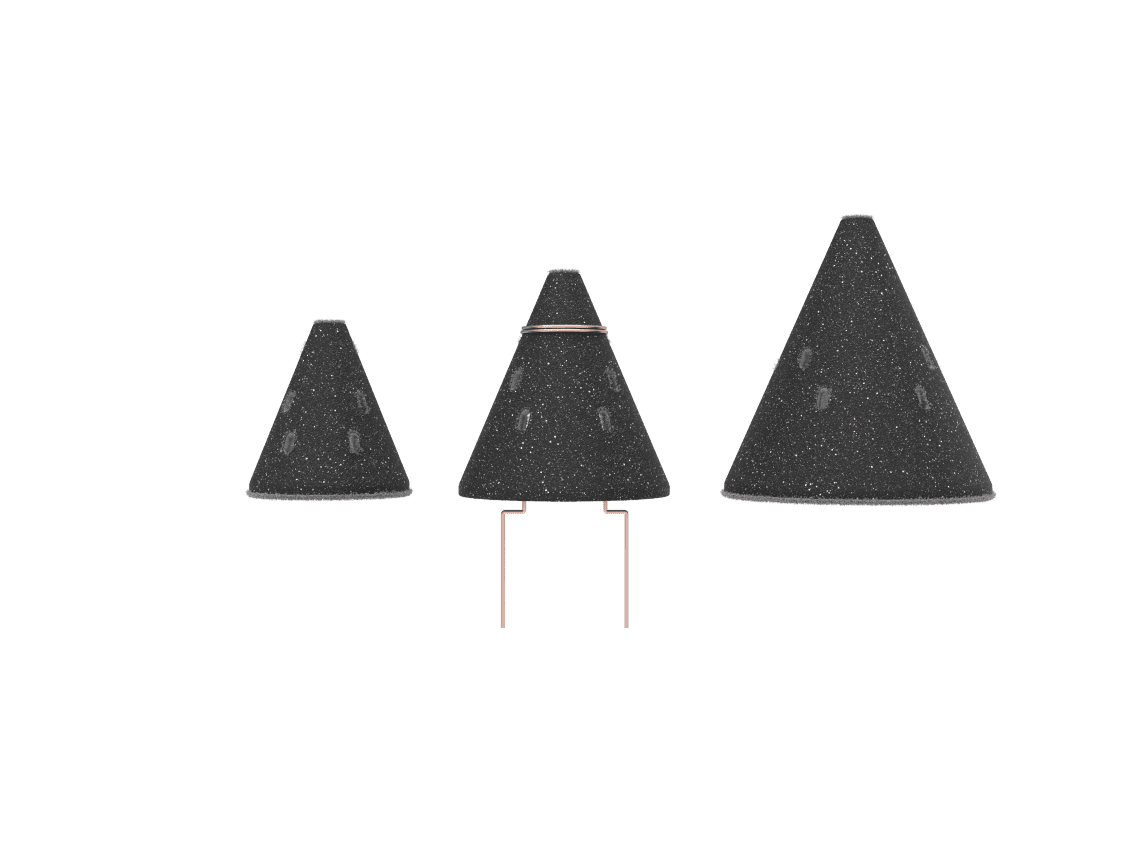

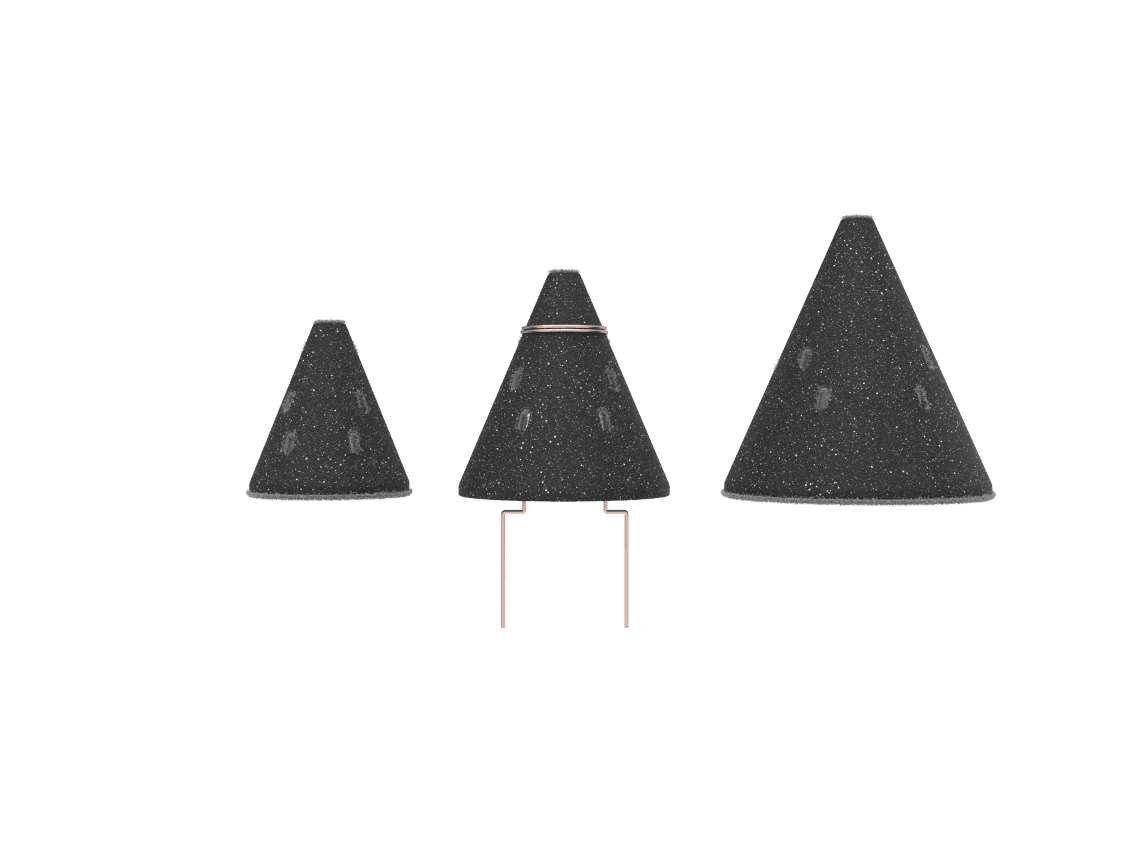

Suitable for halogen and LEDs – available in 3 sizes: 150 x 150 mm, 200 x 200 mm, 250 x 250 mm
Flexible and lightweight – designed to be easily and quickly installed from below ceilings with no special tools required
Compatible with new and retrofit solutions – does not need to be removed when changing light fittings

Availability

OD x H	Downlighter Cut Out D	Downlighter H
150 x 150	50-75
200 x 200	75-100
250 x 250	100-140
300 x 170	145-270	≤ 170
350 x 230	145-270	≤ 230

Test Approvals

Fire Test Approvals

FF109 – 150, 200, 250mm

Solid Timber Joist Floor test to EN 1365-2 for 60 minutes – Report No. TE94667

Metal Web Joist Timber Floor – 30 Minutes – Report No. 394530

Timber I-Beam Joist Floor – 30 Minutes – Report No. 422978

FF109 – 300 and 350mm

Suspended Ceiling protecting Steel Beams to BS476 Part 23 for 60 minutes – Report No. FG8962-208217

Fire-rated ceiling/floor systems protecting timber joists, steel joist systems and concrete floor: AS1530.4 Assessment No.: FAR 2032 / BRANZ Fire Rating: FRL 60 / 60 / 60

FF109 – 250 and 350mm

Mineral fibre suspended ceiling protecting plastered reinforced concrete/hollow clay tile floor for EI120 Minutes – Classification Report No. 311120/3599FR

Acoustic Testing Approvals

FF109 Covers have undergone acoustic testing in separating and internal ceiling/floor constructions and have been shown to reinstate acoustic insulation in line with Approved Document E, following the fitting of downlights.
Certificate No.: 213942 / BRE
